How to Describe a Casting Defect Before Guessing the Cause

Posted By: Ian Wiese NFFS, Technical,

When a casting defect appears, the first question is often “What caused it?”

A reject affects schedule, cost, customer confidence, and morale. But in defect analysis, the fastest path to the right answer usually starts with a slower first step: describe the defect clearly before guessing the cause.

Casting defects can be misleading. Gas porosity, shrinkage, oxide folds, sand inclusions, cold shuts, laps, hot tears, machining tears, and repair-related indications can appear similar. Two defects that look alike may have different causes. Two defects with the same cause may look different depending on alloy, section size, mold process, cooling rate, inspection method, and when the defect is discovered.

A good description does not solve the problem by itself. It prevents the foundry from solving the wrong problem.

Start with neutral language

The first description should be factual. Instead of saying “we have gas porosity,” say “we are seeing small, rounded internal voids exposed during machining on the pressure face of the casting.” Instead of “bad sand,” say “there is a rough, irregular surface condition with embedded nonmetallic material near the gate.” Instead of “the gating caused it,” say “the defect appears near the first metal entry area and has recurred on the last three runs with the current gating layout.”

The difference matters. The first version jumps to a conclusion. The second version preserves evidence.

This is especially important in non-ferrous alloys, where several mechanisms can overlap. In aluminum castings, hydrogen porosity, shrinkage porosity, oxide films, mold gas, and turbulence-related entrainment can all contribute to voids or leak paths. In copper-base alloys, including nickel aluminum bronze and copper-nickel, melt cleanliness, oxidation, feeding, mold conditions, repair practice, and inspection requirements can all influence the final result. The defect name should not outrun the evidence.

Describe where it is

Location is one of the strongest clues in a casting investigation.

Is the defect on the surface, subsurface, or internal? Is it exposed only after machining? Does it appear in a heavy section, thin section, boss, fillet, pressure wall, cored passage, ingate area, riser contact area, cope surface, drag surface, parting line, or area far from feed metal? Does it occur where the casting is expected to solidify last? Does it appear where two metal fronts meet?

A shrinkage-related indication in a heavy boss points the investigation in a different direction than rounded pores scattered across a machined surface. A linear indication at a thin-wall junction suggests a different problem than a rough, nonmetallic inclusion near turbulent metal entry. The question is not just “what does it look like?” It is “where did the process give this defect an opportunity to form?”

Describe what it looks like

Appearance matters, but it should be recorded carefully.

Rounded, smooth-walled cavities may suggest gas-related porosity, but the investigation should still ask how the gas was introduced: dissolved gas, mold gas, core gas, trapped air, aspiration, or reaction. Irregular, dendritic, interconnected voids in heavy sections may suggest shrinkage or feed-related porosity. Film-like, folded, streaky, dark, or nonmetallic features may suggest oxides, dross, slag, sand, or other inclusions. Linear seams, laps, or cold shuts may point toward filling temperature, metal velocity, interrupted flow, poor fusion between metal fronts, or geometry that is difficult to fill.

Cracks also need careful description. Are they straight, branched, oxidized, fresh, open to the surface, or visible only under penetrant inspection? Do they appear in restrained sections, sharp transitions, repair areas, or locations with heavy grinding? Timing, location, and surface condition matter.

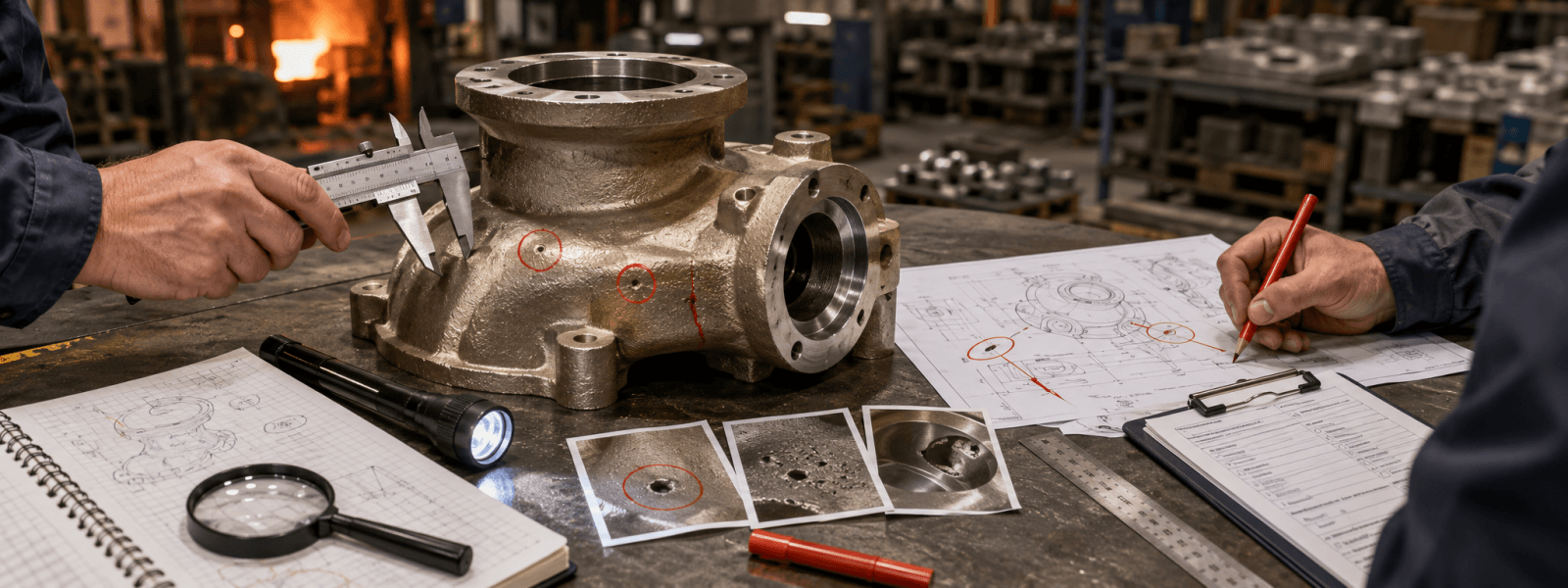

Use dimensions whenever possible. Record approximate length, width, depth, diameter, area affected, distance from a feature, and depth below the machined surface. Include scale in photographs. A close-up photo without a ruler, coin, caliper, or drawing reference can create confusion instead of clarity.

Describe how it was found

The inspection method shapes what the foundry knows.

Visual inspection, penetrant testing, radiography, ultrasonic testing, pressure testing, machining, fracture examination, chemical analysis, metallography, and hardness testing all reveal different information. A surface indication found by penetrant is not the same evidence as an internal indication found by X-ray. A leak during pressure testing may be caused by connected porosity, a crack, an inclusion path, a repair issue, or a machined-through feature.

The report should say how the defect was detected and at what stage. Was it found after shakeout, blast, heat treatment, rough machining, final machining, weld repair, pressure test, or customer inspection? The later a defect appears, the more important it becomes to reconstruct the steps before discovery.

Describe the pattern

One defect is useful information. A pattern is better.

How many castings were affected? How many were inspected? Did the issue appear in one heat, mold line, shift, pattern, core batch, furnace, ladle, or customer revision? Is it occasional, recurring, worsening, or suddenly new? Did the defect appear after a change in charge material, melt practice, sand system, binder, venting, gating, risering, pouring temperature, heat treatment, inspection level, machining allowance, or customer acceptance criteria?

Many foundry problems are caused by several small variables moving in the same direction. Pattern information helps separate a one-time event from a process problem.

Include the casting and the requirement

A defect cannot be fully understood without the casting context. The description should include alloy, process, casting type, approximate size, key section thicknesses, service condition if known, inspection requirement, acceptance standard, and whether repair is allowed. A small surface discontinuity on a non-critical area is different from a connected internal indication in a pressure-containing copper-base component.

Use the description to guide the next questions

A clear defect description should lead naturally to the next round of questions. Rounded, internal voids may point the team toward gas pickup, mold gas, venting, melt handling, core condition, or turbulence. Irregular voids concentrated in hot spots may point toward feeding, risering, chills, solidification path, and gating. Film-like or nonmetallic features may point toward oxide formation, dross handling, skimming, filtration, ladle practice, pouring height, mold erosion, or turbulence. Linear indications where metal fronts meet may point toward metal temperature, fill time, gating balance, section thickness, mold temperature, or interrupted pouring.

The point is not to avoid root cause analysis. The point is to earn it.

Before assigning a cause, capture the alloy, process, casting type, production stage, defect location, appearance, size, distribution, inspection method, number of castings affected, recurrence pattern, recent changes, photos with scale, marked-up drawings if available, and what has already been tried.

Better descriptions create better solutions

Good defect analysis is not about sounding certain early. It is about becoming accurate as quickly as possible.

A foundry that describes the defect well can ask better questions, involve the right people, choose the right inspection or testing method, avoid unnecessary process changes, and communicate more effectively with customers.

For NFFS members, this habit is central to the work of the Technical Services Office. Members do not need every answer before bringing a problem forward. A clear description of what is happening is enough to begin a useful conversation.

Before guessing the cause, describe the defect. That simple step can save time, reduce confusion, and help move the foundry closer to the real solution.
